Win7





1. Click on Start, go to Control Panel

2. Click on the icon Network and Internet

Control_Panel

























3. Select Network and Sharing Center

Win7_3

4. Select Manage wireless networks

Manage_Net





















5. Click Add

Seven_4





















6. Select Manually create a network profile

Seven_6





















7. Configure settings to the following:

  • Network Name: FSUSecure
  • Secure type: WPA-2 Enterprise
  • Encryption type: AES
  • Make sure Start this connection automatically is checked
  • When completed click Next
Win7_7























8. Click Change connection settings to open the FSUSecure Wireless Network Properties

Win7_8























9. Under the Connection tab(make sure Connect automatically when the network is in range is checked). Next click the Security tab.

Win7_9























10. Confirm Security type: WPA2-Enterprise and Encryption type: AES. Next, click the button Settings

Win7_10























11. Check Validate server certificate

  • Check Connect to these servers:, insert in the text box auth.its.fsu.edu
  • Under Trusted Root Certification Authorities, Check the following
    • AddTrust External CA Root
    • COMODO High-Assurance Secure Server CA (if available)
  • Under Select Authentication Method, check Secured password (EAP-MSCHAP v2)
Windows 7 Cert Servers









































12. Click Configure button

13. Uncheck the box that says, Automatically use my Windows logon name and password (and domain if any)

Win7_15















14. Click OK, then OK to return to the FSUSecure Wireless Properties

15. Click on Advanced Settings

Vista15























16. Check the box next to Specify authentication mode, select User authentication, click Save Credentials.

Windows717

























17. In the User name field -if you're a student- enter your official FSU Email address (FSUID@my.fsu.edu) or as a member of the Faculty/Staff, enter your FSUID. Next insert your password and Password fields.

18. Click OK

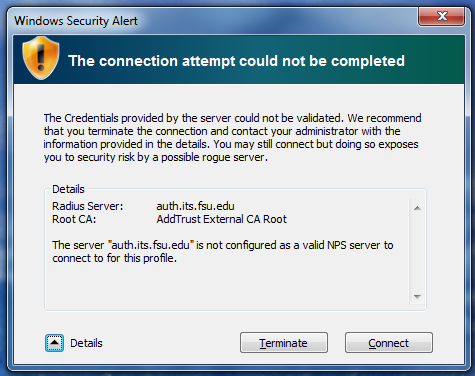

19. You may receive the following warning. Click Accept or Connect

Win 7 Trust

Setup is now complete.
